Oxygen Concentrator Dedicated Pressure Sensor PCM311

Product overview

This product has stable performance, high reliability, and can completely replace imported products such as Honeywell. It is widely used in the field of medical instruments such as oxygen concentrator and has been supplied in bulk to well-known domestic enterprises such as Yuyue Medical.



Features



 Stable performance and high reliability

 0.25%FSS high accuracy

 0-200KPa pressure ranges

Widely used in the field of medical instruments

18 months warranty period







Applications



Medical instruments

 Medical breathing

Oxygen concentrator


Product Parameters


Performance parameters

Characteristics

Min

Normal

Max

Unit


Pressure ranges

0

/

200

KPa


Power supply voltage

/

10.0

16

VDC


Power supply current

/

/

1.5

mA


Zero output

-0.5

0

0.5

mV


Full span output

38.5

40

41.5

mV


Operating temp.

-40

/

85


Compensation temp.

0

/

50


Zero temp. drift

-1

/

1

mV


Sensitivity temp. drift

-2

/

2

%FSS


Accuracy

/

±0.25

/

%FSS BFSL


Response time

/

1

/

ms


Output impedance

2

3.3

5

kΩ


Input impedance

30

40

50

kΩ


Pin electrical definition method




Pin 1

Pin 2

Pin 3

Pin 4


Output+

Power+

Output-

Power-






Production process

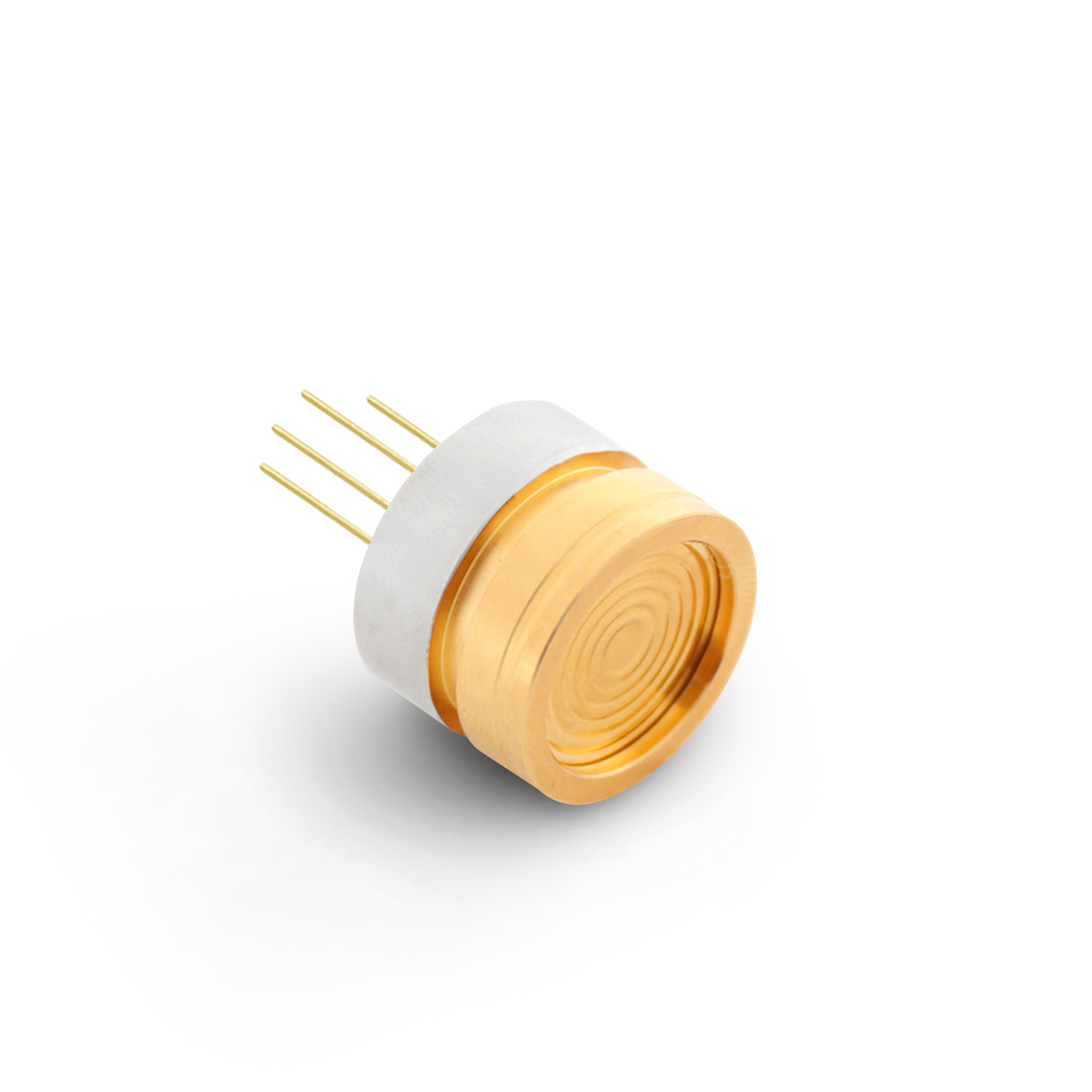

P19 High Stability Piezoresistive Silicon Pressure Sensor


                                                     Testing Equipment

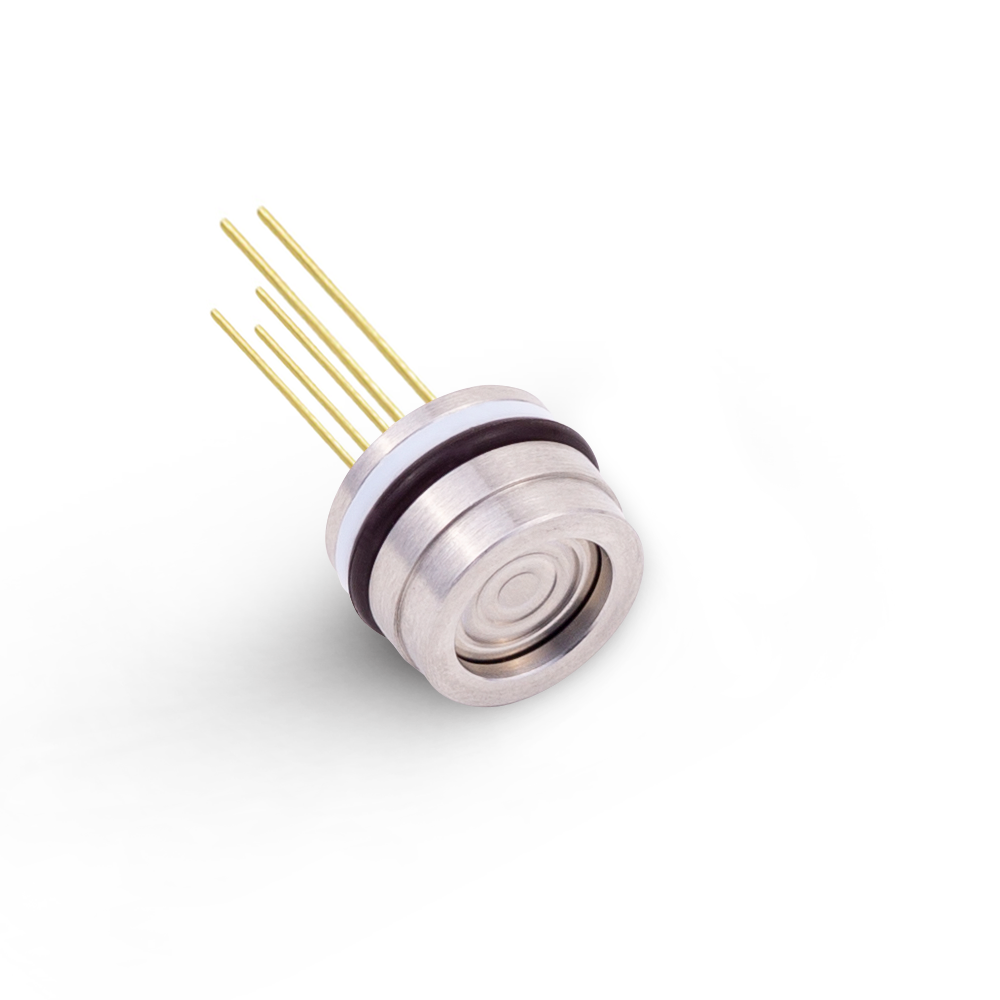

PC28-2400 Pressure SensorPC28-2400 Pressure Sensor
